Clear PETG Sheet For Medical Packaging
Product Description
Clear PETG Sheet is a rigid sheet, offering excellent clarity and impact resistance, allowing for various applications. PETG is easily vacuum-formed, printed, bonded, and polished. Because of its strength and glass-like clarity, it is often used in the fabrication of light boxes and protective covers where visibility is the key.
| Item | Typical Value |
| Product name | Clear PETG Sheet Blister Packaging |
| Width | 300mm - 2100mm |
| Thickness | 0.18mm - 7mm |
| Size | Custom |
| Material | PETG |
| Color | Transparent, Custom |
| Application | Blister Packaging |
| Surface | Smooth |
| Feature | Rigid |
| Sample | Available |
- PETG is easy to fabricate and thermoform without pre-drying, hence faster cycle times and cost savings can be achieved. Thermoforming and bending can be done with great accuracy and with maintained visual clarity.
- Anti-fog PETG sheet and roll, coated with environmentally-friendly nanometer antifogging agent, one-side clean, no crystal point, water ripple, high light transmittance, water vapor is not easy to condense on the sheet surface, keep clear and bright.
- Products are widely used in medical protection, face shield, lens, and other protection.
- Jiaou® PETG Plastic Sheets are a versatile co-polyester used for a wide range of applications that require exceptional clarity and mechanical properties.
- Jiaou® PETG offers designers a high degree of freedom for realizing intricate transparent shapes and fast becoming an environmentally viable alternative to clear PVC.
- Jiaou® PETG sheet is an ideal product for the vacuum forming process for point-of-sale parts due to not having to pre-dry the material. Jiaou®PETG has the ability to reposition and reform, and the ability to down gauge some individual parts due to a higher impact strength than that of PMMA.
Technical Data Sheet
| Item | Typical Value | Testing Method |
| Intrinsic Viscosity(dL/g) | 0.750+/-0.015 | Ubbelodhe viscometer |
| Specific Gravity(kg/cm³) | 1.27 | ASTM D792 |
| Moisture Absorption(%) | 0.15 | ASTM D570 |
| Tensile Strength@Yield 50mm/min( inch/min)(kgf/cm²) | 496 | ASTM D638 |
| Tensile Strength@Break 50mm/min( inch/min)(kgf/cm²) | 281 | ASTM D638 |
| Elongation@Yield 50mm/min( 2inch/min)(%) | 3.7 | ASTM D638 |
| Elongation@Break 50mm/min(2 inch/min)(%) | 136 | ASTM D638 |
| Flexural Strength 1.27mm/min(2 inch/min)(kgf/cm²) | 620 | ASTM D790 |
| Flexural Strength 1.27mm/min(3 inch/min)(kgf/cm²) | 20800 | ASTM D790 |
| Low temperature falling dart impact(g) | 791 | ASTM D358 |
| Atmospheric temperature falling dart(g) | 1701 | ASTM D358 |
| Lzod Impact Strength Notched@23 ℃(J/m) | 98 | ASTM D256 |
| Rockwell Hardness(℃) | 106 | R-scale |
| Heat Distortion Temperature 0.45Mpa(66 psi)(℃) | 77 | ASTM D648 |
Application For Clear PETG Sheet
- Used for the display box, POP/POS display stands

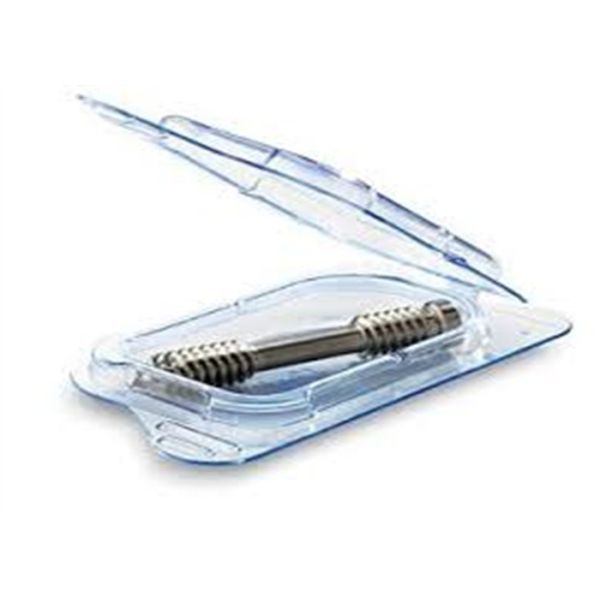

- Used for medical packaging
- Used for thermoforming
- Used for machine guards
